Gedetailleerde informatie

Temperatuurweerstand:	-270°C tot 700°C	Dampdoorlaatbaarheid:	Hoog
Geluidsabsorptiecoëfficiënt:	0,85	Compressiesterkte:	≥10 kPa
waterAbsorptie:	<1%	Milieu-impact:	Recyclebaar en milieuvriendelijk
Materiaal:	Mineraalwol	vuurbestendigheid:	Niet-brandbaar, klasse A1
thermische geleidbaarheid:	0,035 W/m·K	Productnaam:	Thermisch isolerende minerale wol
Installatiemethode:	Mechanische bevestiging of lijm	Afmetingen:	Normaal gesproken 600 mm x 1200 mm
Toepassingen:	Isolatie van gebouwen, industriële isolatie, HVAC-systemen	Dikte:	40-200 kg/m³
Dikte:	25 mm tot 150 mm
Markeren:	Fiberglass acoustic ceiling tiles , Thermal insulation ceiling panels , Modern building ceiling tiles

Productomschrijving

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings

FANRYN Acoustic & Thermal Ceiling Tiles deliver a complete solution for modern interior needs. With superior sound absorption (NRC 0.9–1.0) and thermal resistance ≥0.5 (m²·K/W), these tiles enhance comfort while reducing energy costs.

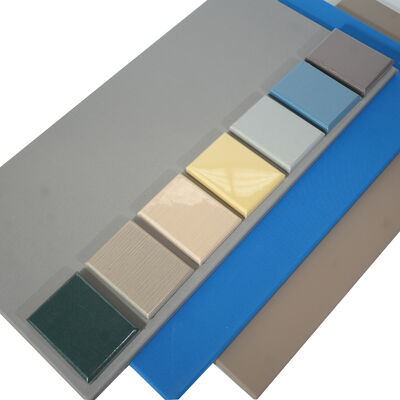

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings 0

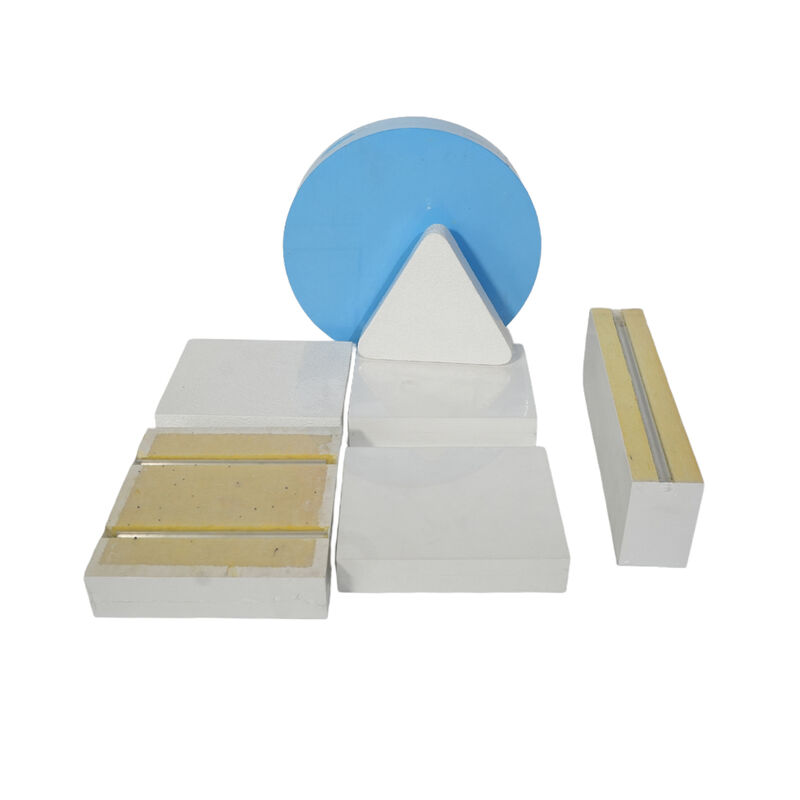

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings 1

Technical Data

Material	Fiberglass wool board
Density	90-130kg/m3
Face	Painting laminated with decorative fiberglass tissue or PVC facing
Color	White, black and others to order
Fire-resistant	Class A
Thermal-resistant	≥0.5 (m2·k/w)
NRC	0.9-1.0
Humidity	Dimensionally stable with RH up to 95% at 40℃,no sagging, wrapping or delaminating
Moisture rate	≤1%(JC/T670-2005)
Environmental impact	Tiles and packing are fully recyclable
safety	Limit of radionuclides in building materials specific activity of 226Ra: Ira≤1.0 specific activity of 226Ra, 232Th, 40K: Ir≤1.3

Key Features

Dual Performance: Excellent acoustic and thermal properties.
Aesthetic Flexibility: Available in multiple colors and finishes.
Easy to Install: Works with inch or centimeter grid systems.
Eco-Conscious: Fully recyclable and safe for indoor use.

Applications

Swimming pools, spas, kitchens, bathrooms, and industrial settings.

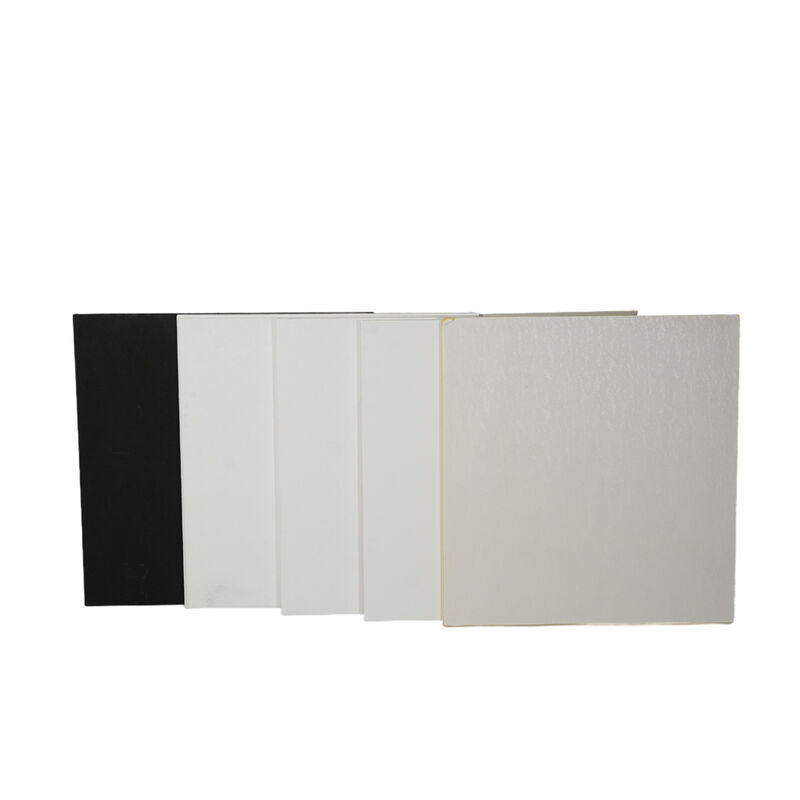

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings 2

Packing and Loading Quantity for Containers:

SIZE	CARTON/40HQ	PIECES/CARTON	M2/40HQ
*60060015MM*	532	20	3830.4
*600120015MM*	266	20	3830.4
*60060020MM*	532	15	2872.8
*600120020MM*	266	15	2872.8
*60060025MM*	532	12	2298.24
*600120025MM*	266	12	2298.24

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings 3

Installation:

use exposed grids, grids width:15mm or 24mm
tiles are easy to trim and install
both inches and centimeters grids are available

Facing on glass wool board:

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings 4

label:

Plaats van herkomst:	China
Merknaam:	FANRYN

Verpakking Details:	karton
Levertijd:	15 werkdagen
Betalingscondities:	T/T
