Eco-Friendly Residential Square Fiberglass Ceiling Tile Acoustic Insulation Panels Fireproof

Basisinformatie
Plaats van herkomst: China
Merknaam: fanryn
Certificering: BS476, EN13501 12018, CE
Modelnummer: Plafondpaneel van glasvezel
Min. bestelaantal: 1*40HQ
Prijs: 0.5-3$ per square meter
Verpakking Details: Karton of Plastic Zak
Levertijd: 10-15 dagen
Betalingscondities: T/T
Levering vermogen: We kunnen 1*40HQ binnen 10-15 dagen produceren
Gedetailleerde informatie
Geluidsabsorptiecoëfficiënt: 0.8-0.9 Dikte: 70-130 kg/m³
Materiaal: Glazen wol Milieu-impact: Recyclebaar en milieuvriendelijk
Dikte: 15 mm, 20 mm, 25 mm. Sollicitatie: Thermische isolatie voor gebouwen, industriële apparatuur
Installatiemethode: ◆gebruik zichtbare roosters, roosterbreedte: 15 mm of 24 mm ◆tegels zijn eenvoudig in te korten en t Brandwerendheid: Niet-brandbaar, klasse A
Thermische geleidbaarheid: >=0,4(m2.k/w) Wateropname: <1%
Markeren:

fireproof fiberglass ceiling tile

,

eco-friendly acoustic insulation panels

,

square fiberglass ceiling tiles


Productomschrijving

Products Description

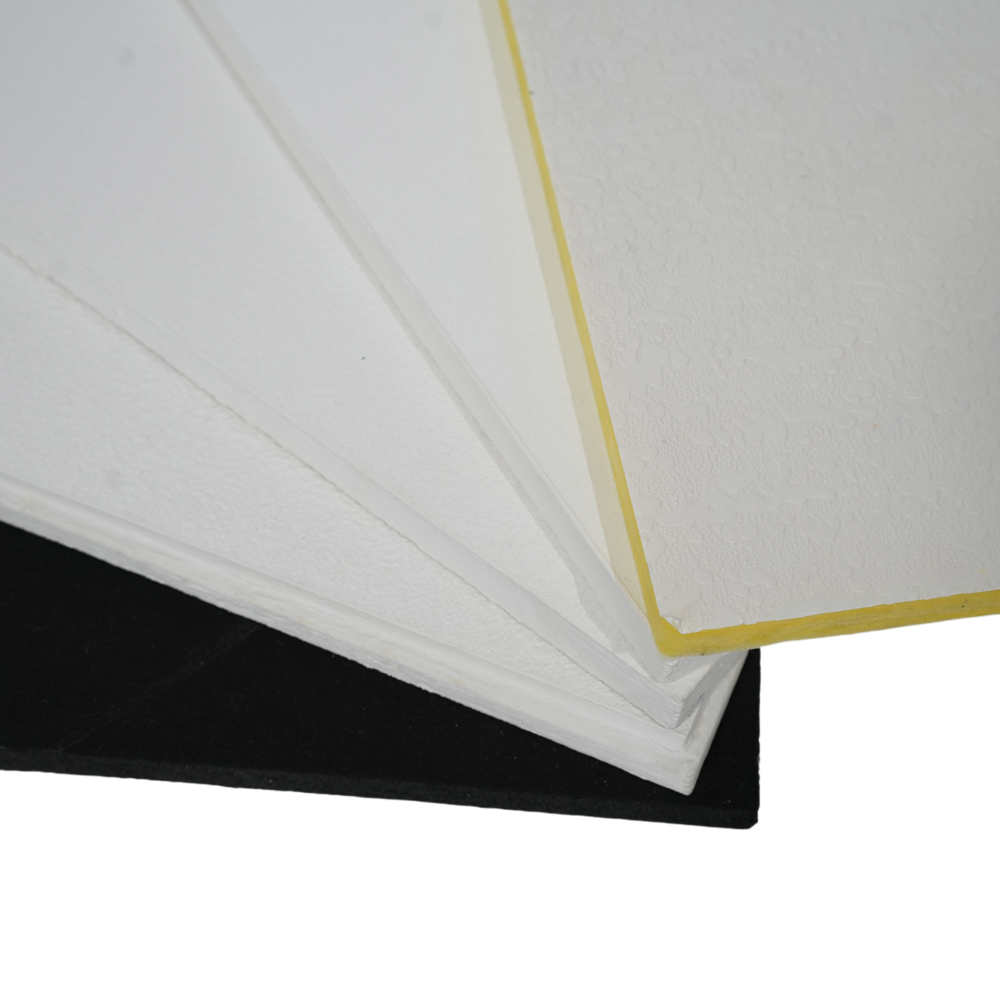

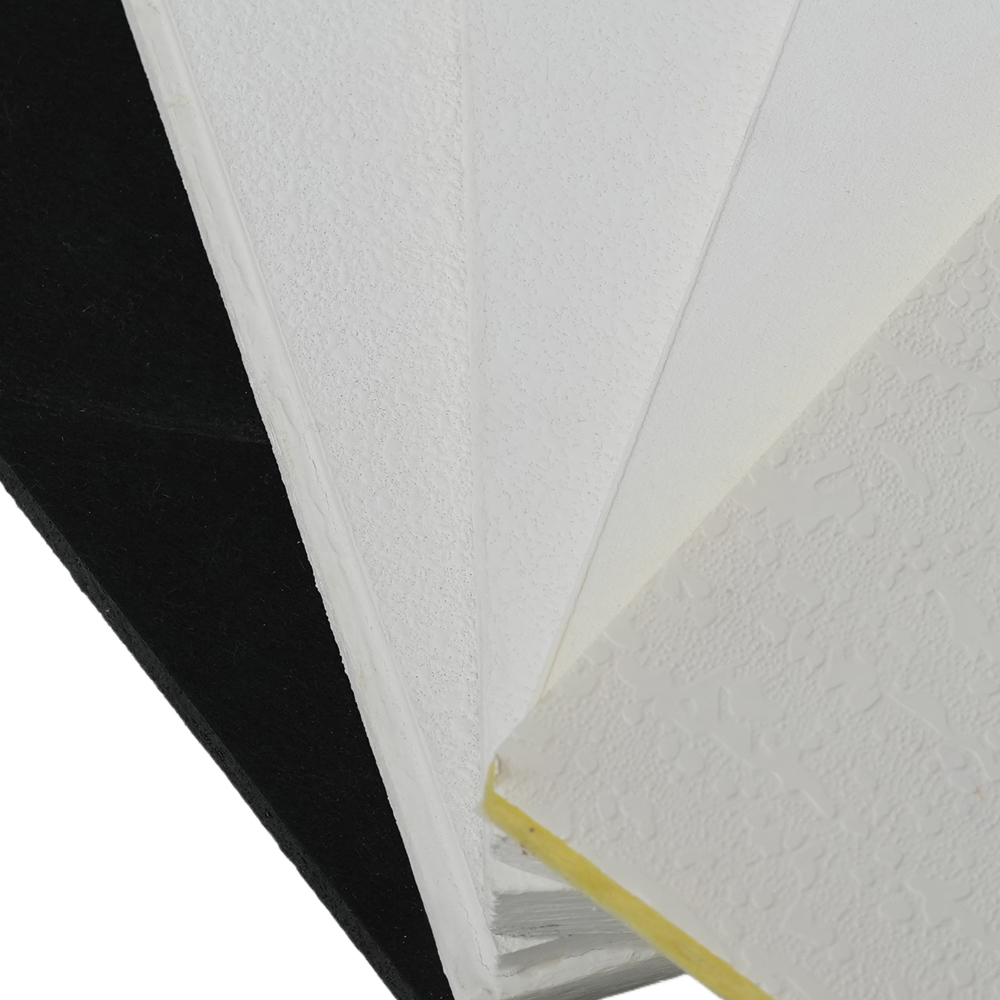

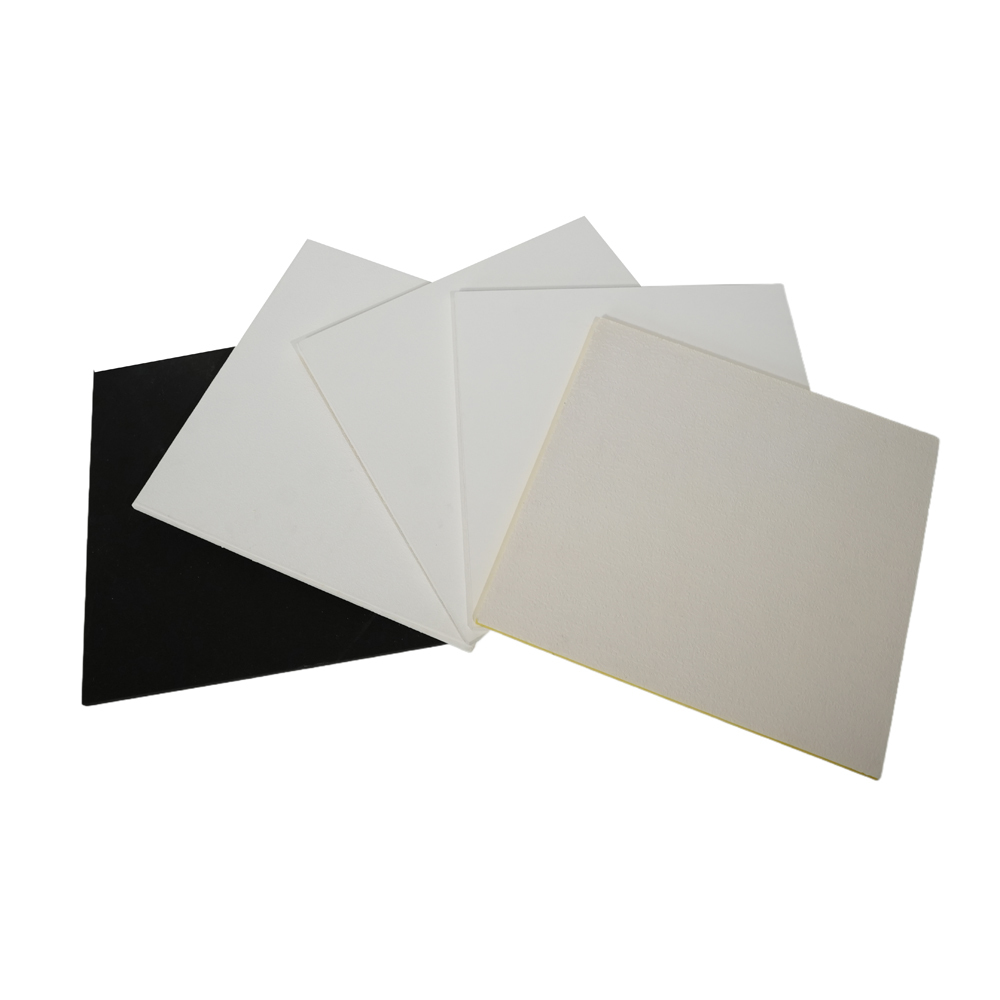

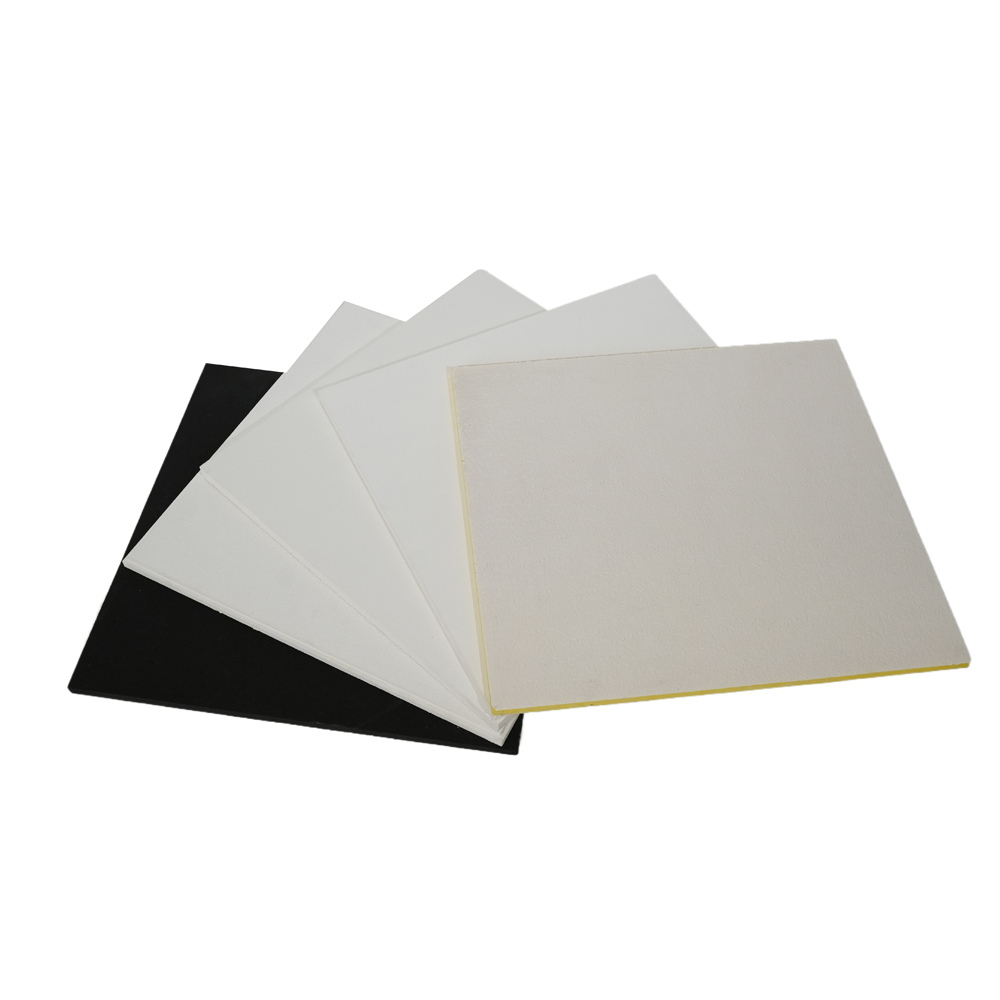

FANRYN fiberglass ceiling board is manufactured from high density fiberglass wool. The visible face has a decorative fiberglass tissue and the back of the tile is covered with normal tissue. The four edges are sealed and square. The tiles will be parallel to grids system after installation.


Eco-Friendly Residential Square Fiberglass Ceiling Tile Acoustic Insulation Panels Fireproof  0

Eco-Friendly Residential Square Fiberglass Ceiling Tile Acoustic Insulation Panels Fireproof  1

Eco-Friendly Residential Square Fiberglass Ceiling Tile Acoustic Insulation Panels Fireproof  2


Product feature of the fiberglass ceiling panel

-Non-Combustible Safety: Certified as an inherently fire-resistant material, it provides reliable protection and ensures full compliance with the most stringent building safety standards and fire codes.

-Exceptional Dimensional Stability: Engineered to resist sagging, warping, or delamination over time, it maintains long-term structural integrity and a consistently flat, seamless installed appearance for the life of the installation.

-Superior Acoustic Performance: Delivers excellent sound absorption, significantly enhancing acoustic comfort and effective noise control in a wide range of interior environments, from offices to residential spaces.

-Eco-Conscious Building Material: Classified as a premier green building product, it supports sustainable construction practices and contributes directly to environmental certification goals such as LEED and BREEAM.

-Versatile Aesthetic Finishes: Available laminated with decorative fiberglass tissue or PVC facing, offering both durability and design flexibility to meet diverse architectural and interior design requirements.


Product Specifications

Material


Fiberglass wool board

Density

90-130kg/m3

Face

Painting laminated with decorative fiberglass tissue or PVC facing

Color

White, black and others to order

Fire-resistant

Class A

Thermal-resistant

≥0.5 (m2·k/w)

NRC

0.9-1.0

Humidity

Dimensionally stable with RH up to 95% at 40,no sagging, wrapping or delaminating

Moisture rate

≤1%(JC/T670-2005)

Environmental impact

Tiles and packing are fully recyclable

safety

Limit of radionuclides in building materials

  specific activity of 226Ra: Ira≤1.0

 specific activity of 226Ra, 232Th, 40K: Ir≤1.3




Packing and Loading Quantity for Containers


SIZE

CARTON/40HQ

PIECES/CARTON

M2/40HQ

600*600*15MM

532

20

3830.4

600*1200*15MM

266

20

3830.4

600*600*20MM

532

15

2872.8

600*1200*20MM

266

15

2872.8

600*600*25MM

532

12

2298.24

600*1200*25MM

266

12

2298.24



 Installation

Eco-Friendly Residential Square Fiberglass Ceiling Tile Acoustic Insulation Panels Fireproof  3

-use exposed grids, grids width:15mm or 24mm
-tiles are easy to trim and install
-both inches and centimeters grids are available


Product application

classrooms, offices, shopping center, etc.

Eco-Friendly Residential Square Fiberglass Ceiling Tile Acoustic Insulation Panels Fireproof  4


Main Facing:

Eco-Friendly Residential Square Fiberglass Ceiling Tile Acoustic Insulation Panels Fireproof  5


Eco-Friendly Residential Square Fiberglass Ceiling Tile Acoustic Insulation Panels Fireproof  6

Eco-Friendly Residential Square Fiberglass Ceiling Tile Acoustic Insulation Panels Fireproof  7

Eco-Friendly Residential Square Fiberglass Ceiling Tile Acoustic Insulation Panels Fireproof  8


Production packing of the glass wool board

Carton or plastic bag

Note: OEM is acceptable

Eco-Friendly Residential Square Fiberglass Ceiling Tile Acoustic Insulation Panels Fireproof  9
