Gedetailleerde informatie

Compressieve sterkte:	≥10 kPa	Thermische geleidbaarheid:	0,035 W/m·K
Toepassingen:	Isolatie van gebouwen, industriële isolatie, HVAC-systemen	Brandwerendheid:	Niet-brandbaar, klasse A1
Dikte:	40-200 kg/m³	Wateropname:	Minder dan 1%
Geluidsabsorptiecoëfficiënt:	0,85	Dikte bereik:	25 mm tot 150 mm
Dampdoorlaatbaarheid:	Hoog	Materiaal:	Mineraalwol
Milieu -impact:	Recyclebaar en milieuvriendelijk	Afmetingen:	Verkrijgbaar in planken, rollen en platen
Installatiemethode:	met een gewicht van niet meer dan 50 kg	Temperatuurbestendigheid:	-270°C tot 700°C
Markeren:	vapor barrier pipe insulation , mineral wool pipe insulation , humid environment pipe insulation

Productomschrijving

Product introduction of the glass wool pipe

Maximize insulation performance in challenging, humid conditions with our faced Glass Wool Pipe Sections. Available with Foil-Scrim-Kraft (FSK) or Alum Glass Cloth facings, these products include a built-in vapor retarder that protects the insulation from moisture ingress. This is critical for preventing a loss of thermal performance and fiber degradation, ensuring long-term reliability and efficiency in environments like swimming pools, food processing plants, and coastal areas.

Product parameter of the glass wool pipe

Recommend Thickness List(mm)

Pipeline System Type	The Thickness of glasswood pipe shell applied in different pipeline(mm)
Pipeline System Type	Liquid Temperature Range℃	Diameter of Branches Under 50mm	Under 25mm	32-50	64-100	125-150	Above 200mm
Air System Steaming and Water System High Temperature/ High Pressure System	152-238	40	64	64	75	89	89
Medium Temperature/ Medium Pressure System	122-151	40	50	64	64	75	75
low Temperature/ low Pressure System	94-121	25	40	40	50	50	50
low Temperature System	49-93	13	25	25	40	40	40
Steaming Condensator of Watering System	Any Temperature	25	25	40	50	50	50

Equivalent Thickness of Surface Cooling Prevention

Environment Temperature	Relative Humidity	System Working Temperature
Environment Temperature	Relative Humidity	2℃	7℃	13℃
38℃	50%-60%	25	25	25
	70%	40	30	30
	80%	75	60	50
	85%	100	90	75
32℃	50%-60%	25	25	25
	70%	25	25	25
	80%	50	50	40
	85%	80	75	60
27℃	50%-70%	25	25	25
	80%	50	40	30
	85%	75	65	50
21℃	50%-70%	25	25	25
	80%	50	40	30
	85%	75	50	40

If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.

Product size of the glass wool pipe

Density(kg/m3)	Thickness(mm)	Length (mm)	Diameter (mm)
48-80	25-90	1000,1200	18-529

Product feature and application of the glass wool pipe

Integrated Vapor Barrier: FSK or Alum Glass Cloth facing blocks moisture migration, protecting the insulation core.
Enhanced Durability: The facing adds surface strength and resistance to tearing during and after installation.
Clean & Professional Finish: Provides a neat, cleanable surface that is both aesthetically pleasing and functional.
All-in-One Solution: Combines thermal insulation and vapor protection in a single, easy-to-install product.

Vapor Barrier Faced Pipe Insulation for Humid Environments 2

Production Facing of rock wool board

Aluminum foil facing

Foil-Scrim-Kraft Facing

Alum Glass Cloth Facing

Vapor Barrier Faced Pipe Insulation for Humid Environments 3

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

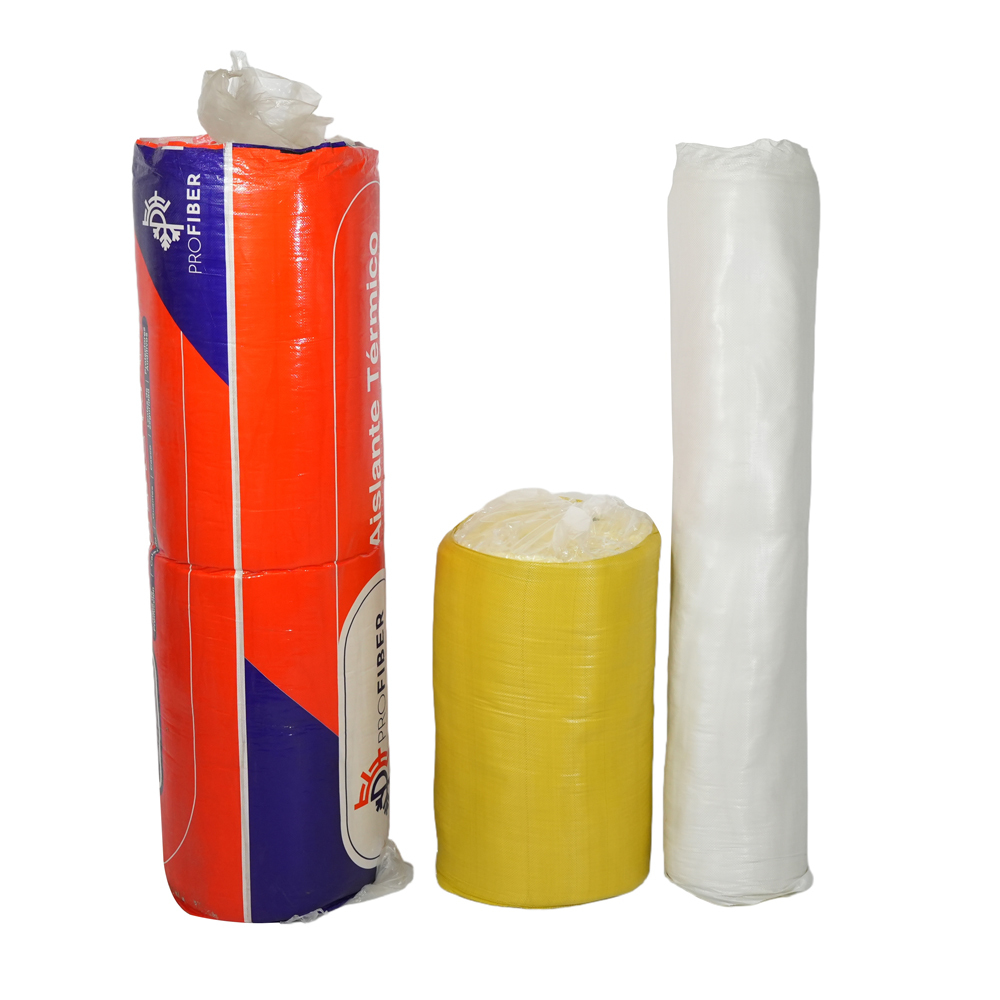

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: What is your lead time for one 40HCcontainer order?

A3: Usual 15-20 work days after placing order

Q4: What is your advantage on glass wool pipe?

A4: Special product with special specification can be made to order.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.

label:

Plaats van herkomst:	China
Merknaam:	FANRYN

Min. bestelaantal:	1 40 HC
Verpakking Details:	Plastic tas
Levertijd:	15 werkdagen
Betalingscondities:	T/T
