Gedetailleerde informatie

Sollicitatie:	Thermische isolatie voor gebouwen, industriële apparatuur	Afmetingen:	Normaal gesproken 600 mm x 1200 mm
Installatiemethode:	Mechanische bevestiging of lijmverbinding	Kleur:	geel tot bruin
Temperatuurbestendigheid:	-180°C tot 700°C	Geluidsabsorptiecoëfficiënt:	0,85
Productnaam:	Thermische isolatie minerale wol	Dikte:	25 mm tot 150 mm
Dikte:	40-200 kg/m³	Milieu-impact:	Recyclebaar, milieuvriendelijk
Wateropname:	<1%	Brandwerendheid:	Niet-brandbaar, klasse A1
Thermische geleidbaarheid:	0,035 W/m·K	Materiaal:	Minerale wol
Compressiesterkte:	≥10 kPa

Productomschrijving

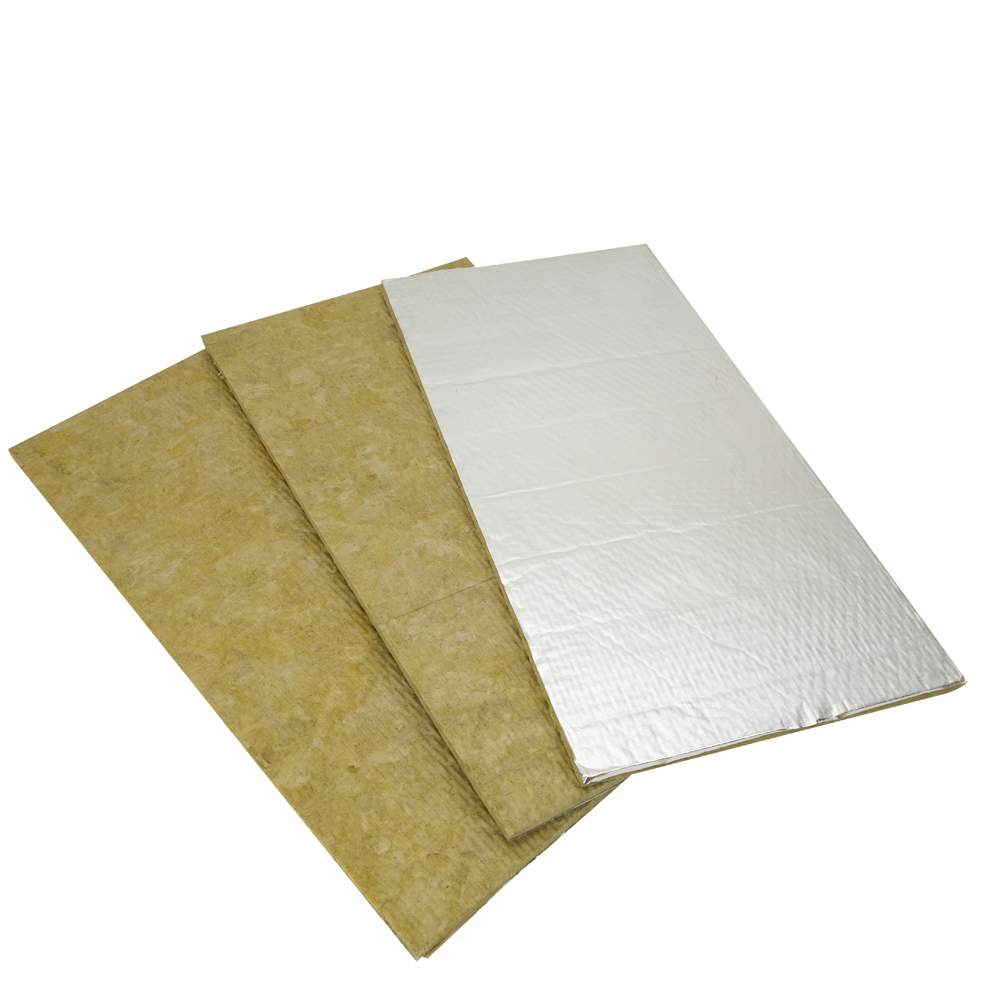

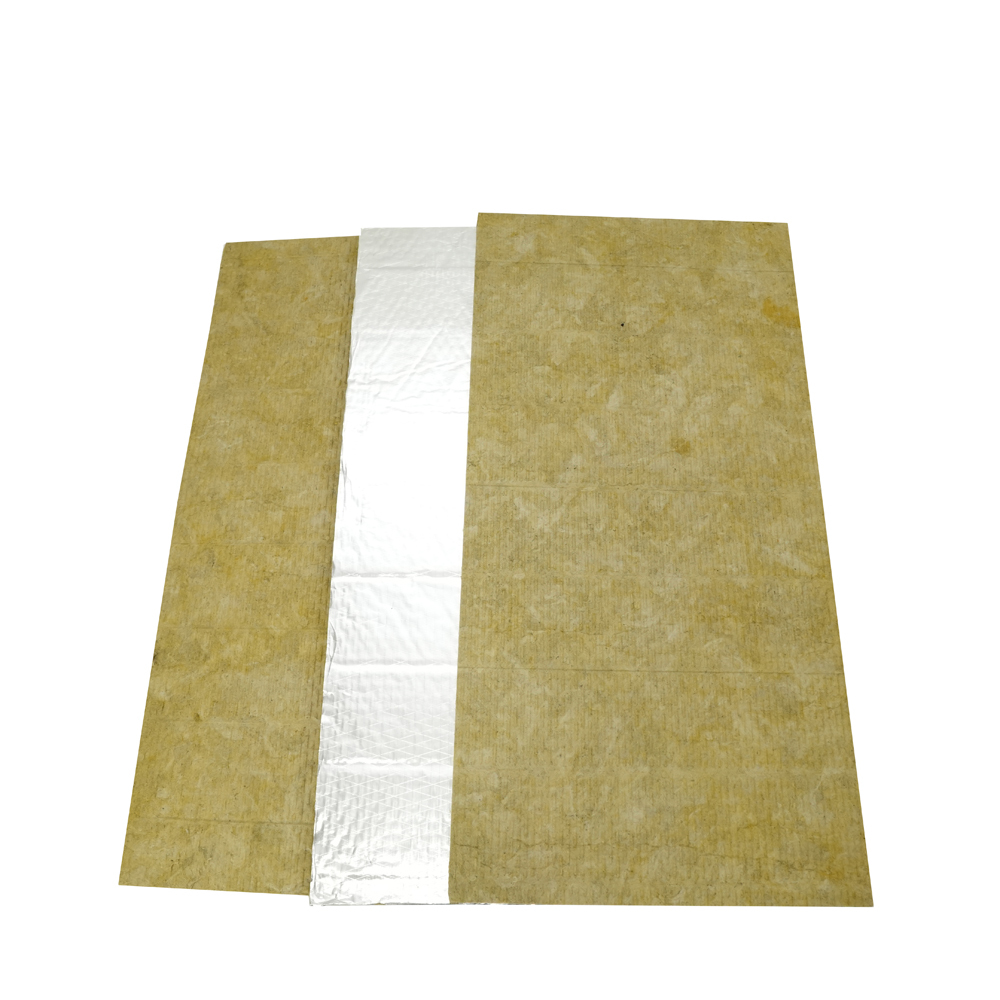

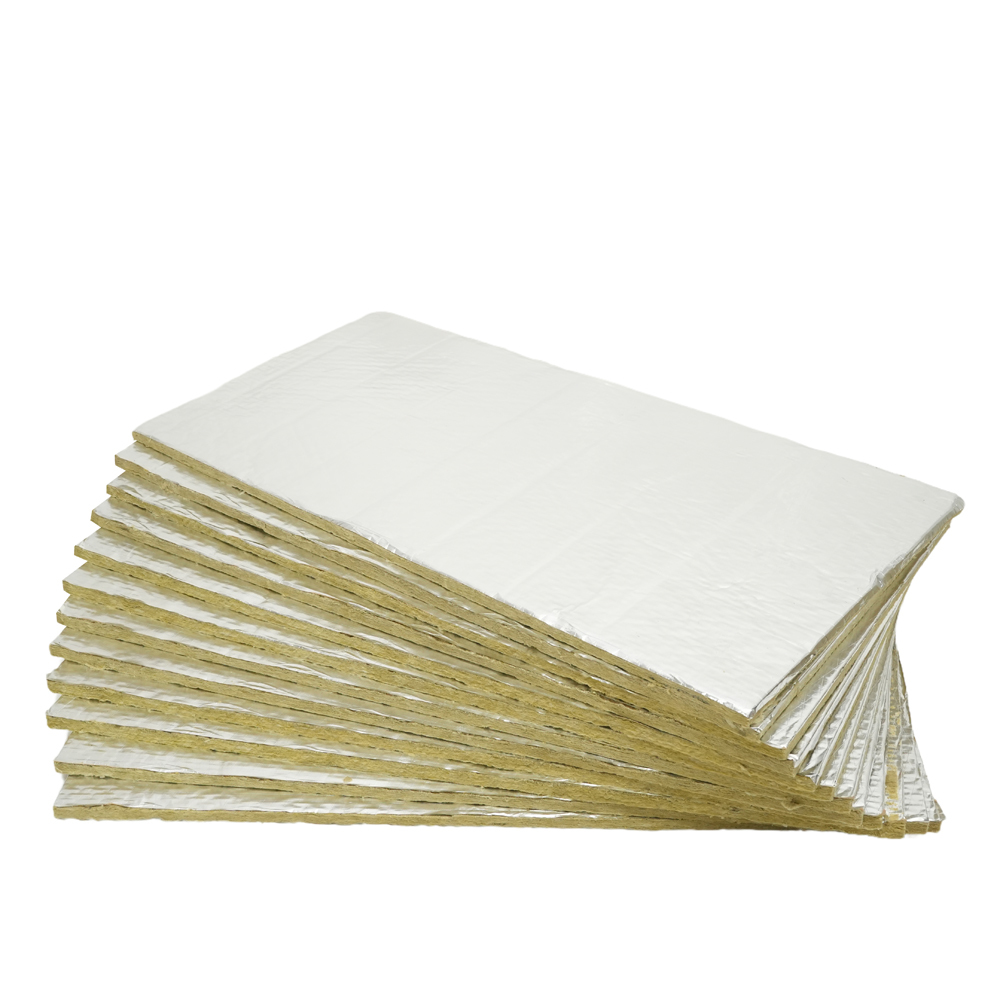

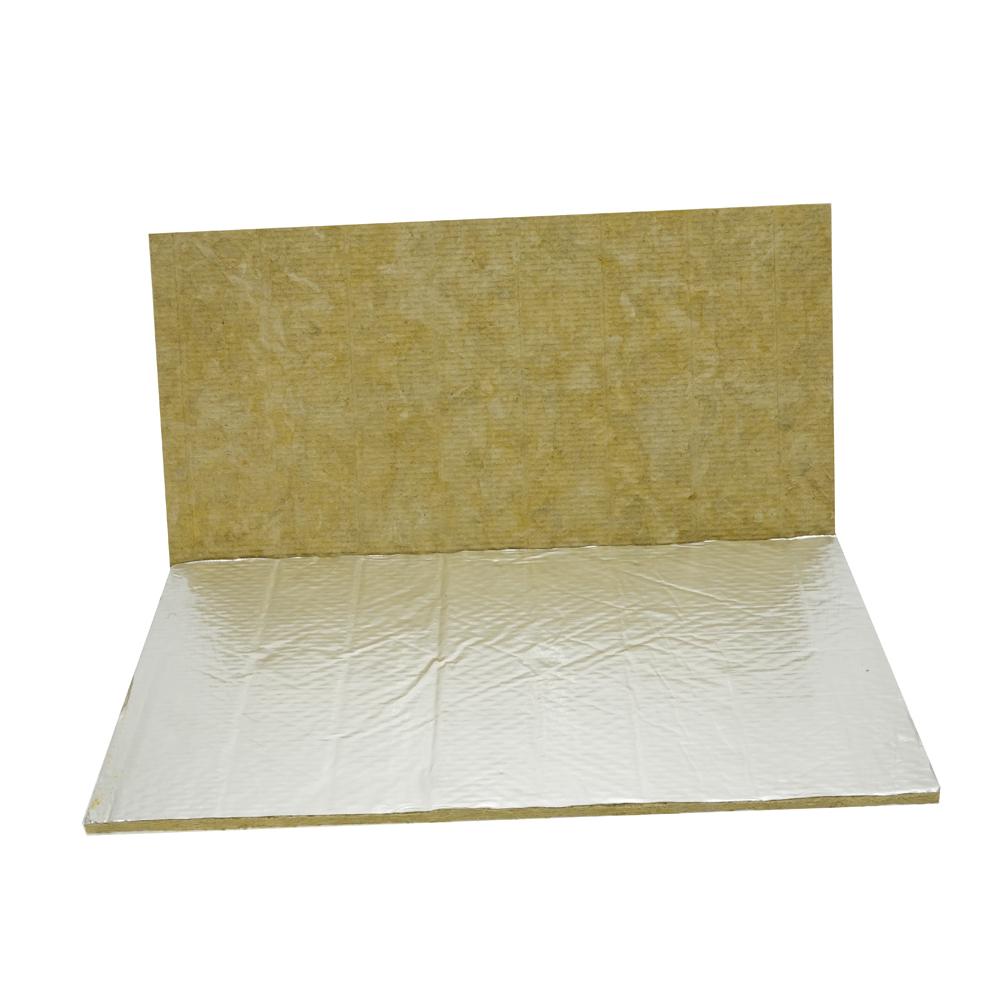

Rock Wool Board (Stone Wool Insulation Board)

Product Overview:

Rock wool board is a rigid insulation panel manufactured from natural basalt rock and recycled slag. The raw materials are melted at temperatures exceeding 1,500°C and spun into fine fibers, which are then bonded with a thermosetting resin and pressed into stable, rigid boards. The result is a dense, porous material that provides outstanding thermal, acoustic, and fire-resistant performance in a wide range of building and industrial applications.

Key Features & Benefits:

Feature	Benefit
A1 Non-combustible	Highest fire safety rating; melting point above 1,000°C; prevents flame spread
Low Thermal Conductivity	≤0.044 W/(m·K) at 70°C for excellent energy efficiency
High Sound Absorption	Dense fiber structure effectively reduces mid-to-low frequency noise
Low Moisture Absorption	≤0.5% water content; resists mold, rot, and corrosion
Dimensionally Stable	Maintains shape and performance over time
Easy to Install	Can be cut on-site with standard tools; suitable for irregular spaces
Eco-friendly	Made from natural stone; asbestos-free and non-toxic

Technical Specifications:

Parameter	Specification
Density Range	24 – 96 kg/m³
Density Tolerance	±10%
Thickness Range	25 – 100 mm (customizable)
Length Range	600 – 2,400 mm (customizable)
Width Range	600 – 1,250 mm (customizable)
Thermal Conductivity	≤0.044 W/(m·K) at 70±5°C
Fiber Diameter	7 ± 1 μm
Shot Content (>0.25mm)	≤12%
Moisture Content	≤0.5%
Organic Matter Content	≤4%
Melting Point	>1,000°C
Fire Rating	A1 Non-combustible

Available Facings:

Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue

Unfaced boards are also available.

Packaging:

Standard: Plastic bag packaging
Custom packaging options available upon request

Applications:

Building exterior wall insulation systems
Curtain wall fire barriers and cavity walls
Roof and ceiling insulation
HVAC duct insulation
Industrial pipe and equipment insulation
Core material for sandwich panels
Soundproofing in machine rooms, studios, and theaters
Marine and offshore insulation

label:

Plaats van herkomst:	China
Merknaam:	FANEYN
Certificering:	CE

Min. bestelaantal:	één 40HQ
Verpakking Details:	PE-zak
Levertijd:	10 werkdagen
Betalingscondities:	T/T

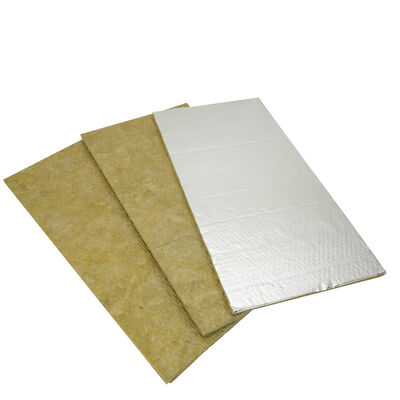

A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation
