Gedetailleerde informatie

Materiaal:	Aluminiumfolie/huisdier/glaswol/draadgaas	Sollicitatie:	Ventilatie
Vorm:	Gevormde ronde	Temperatuurbereik:	-30 - +250 graden Celsius
Diameterbereik:	80 mm - 610 mm	Kleur:	Zilver
Standrad lengte:	5-10m	Snelheid van luchtstroom (max):	30 M/S
Markeren:	sound-reducing HVAC duct , acoustic insulated air ducting , flexible HVAC duct insulation

Productomschrijving

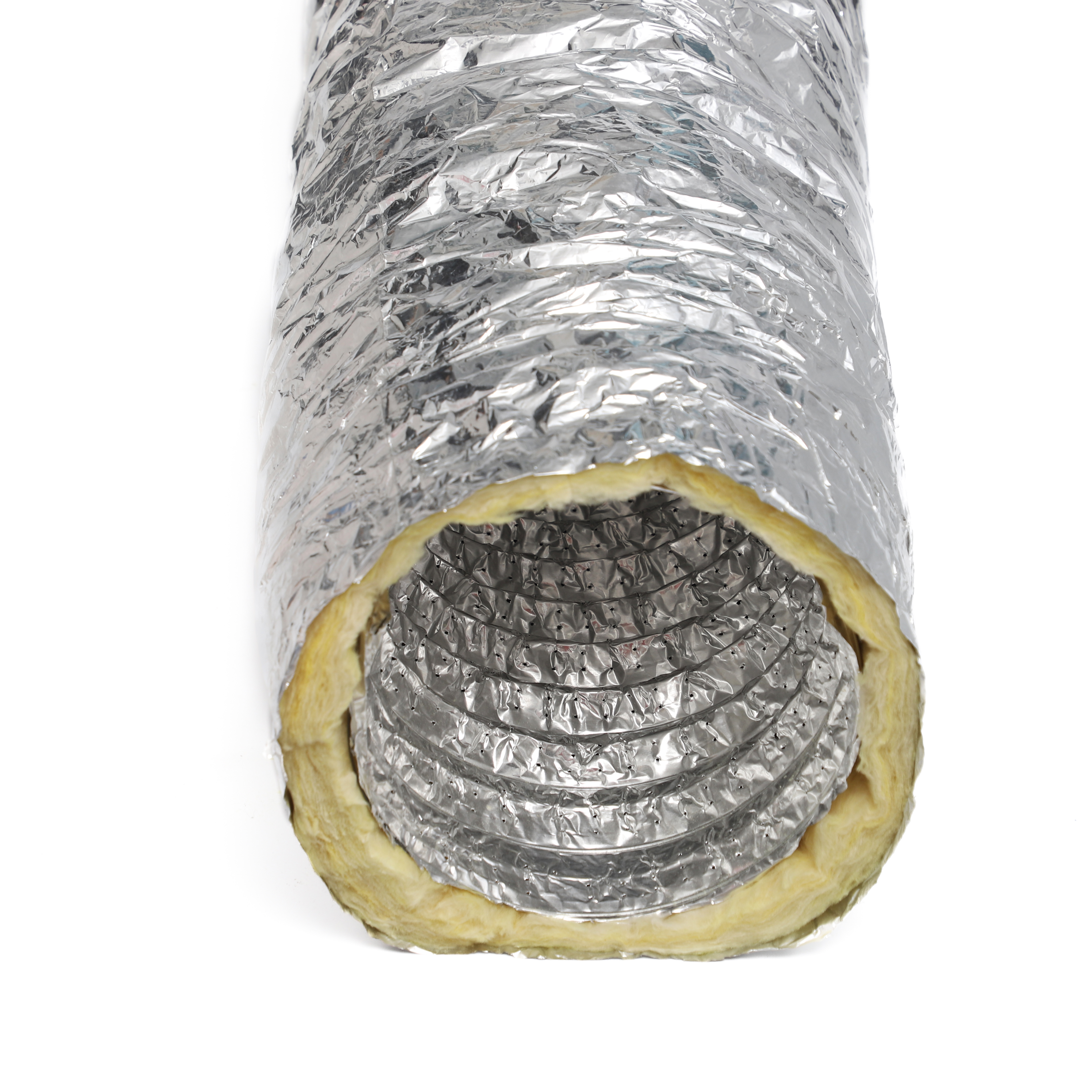

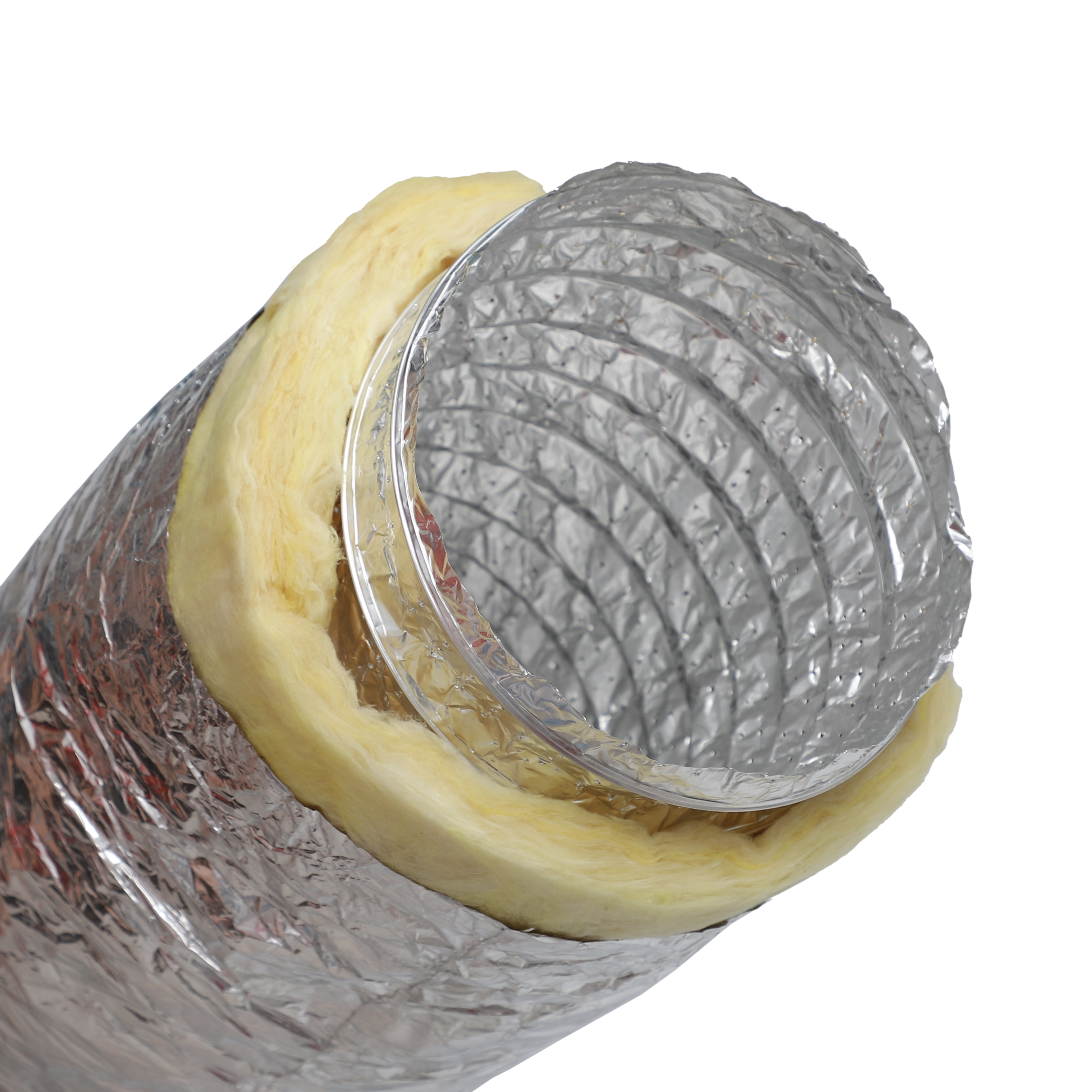

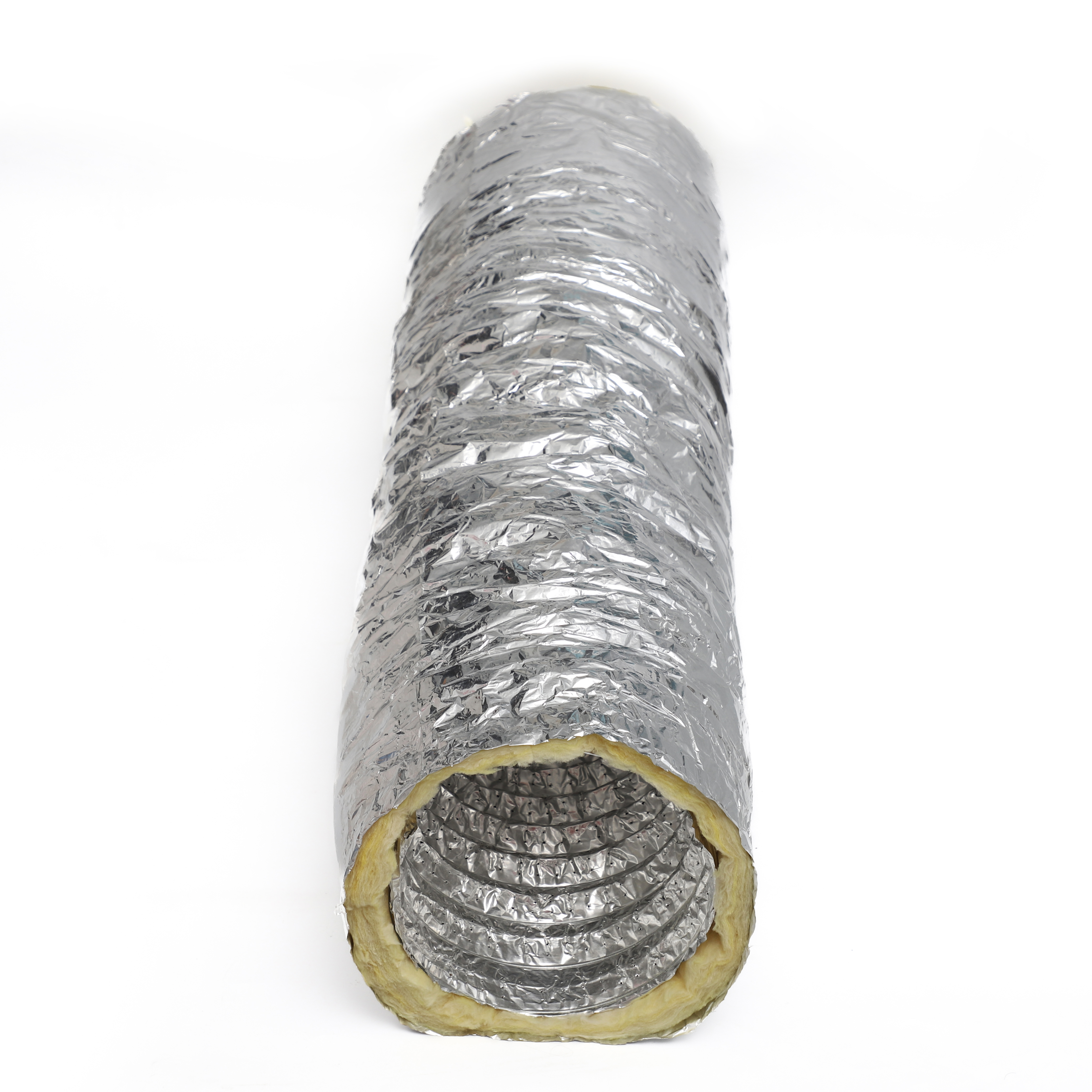

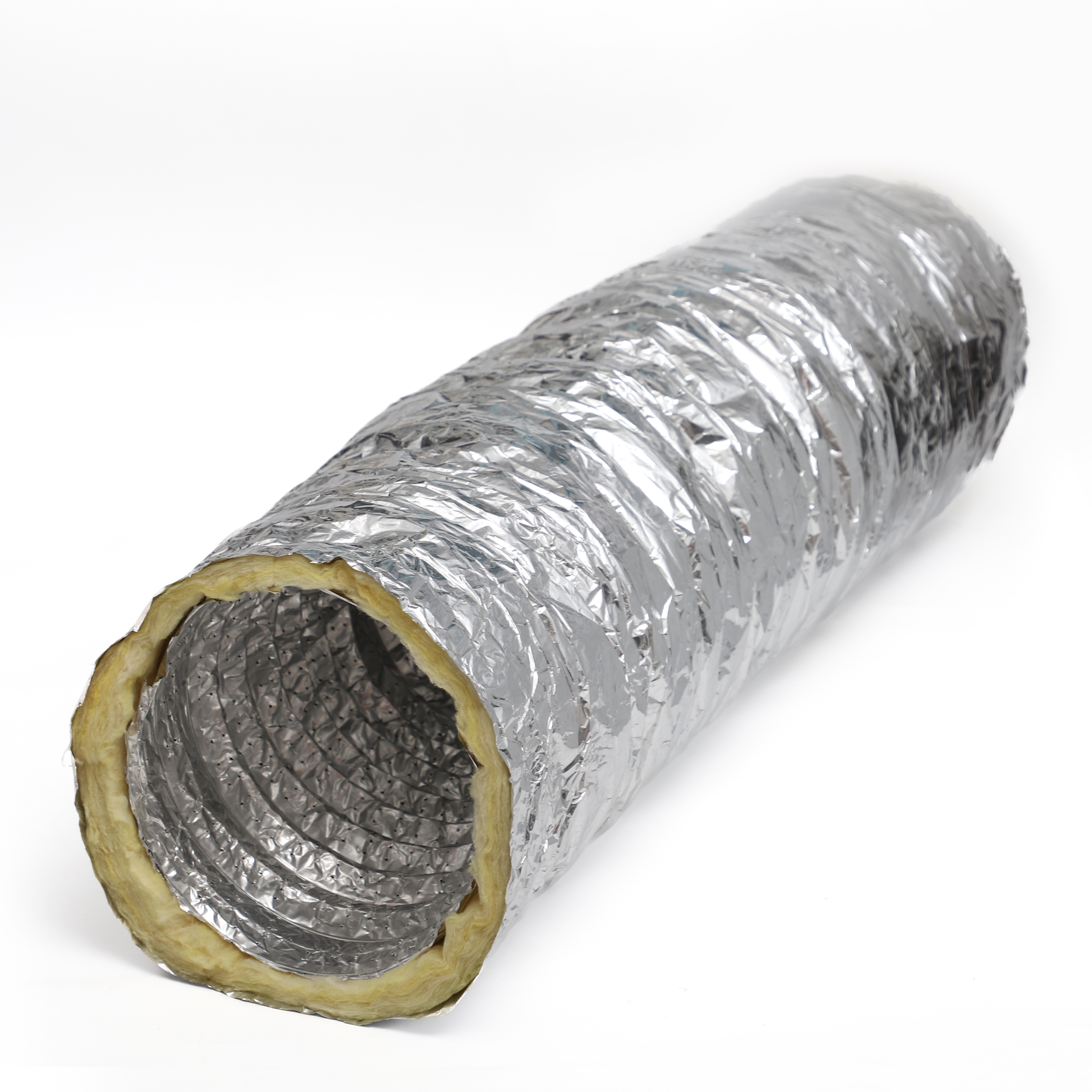

Sound-Reducing Insulation Flexible HVAC Duct

Factory direct acoustic insulated flexible air ducting hose for HVAC systems parts

Product Overview

Factory air conditioning air duct HVAC system insulated duct designed for optimal performance in heating, ventilation, and air conditioning applications.

Technical Specifications

Property	Value
Diameter Range	80 ~ 610mm (3"~ 24")
Temperature Range	-30 ~ +250 °C
Velocity of Air Flow (Max.)	30 m/s
Working Pressure	2500 Pa/3000 Pa
Bending Radius	0.54*D+25mm
Thickness of Fiberglass Insulation	25-50mm
Density of Fiberglass Insulation	16~32kg/m3
Standard Length	5 ~ 10m

Key Features

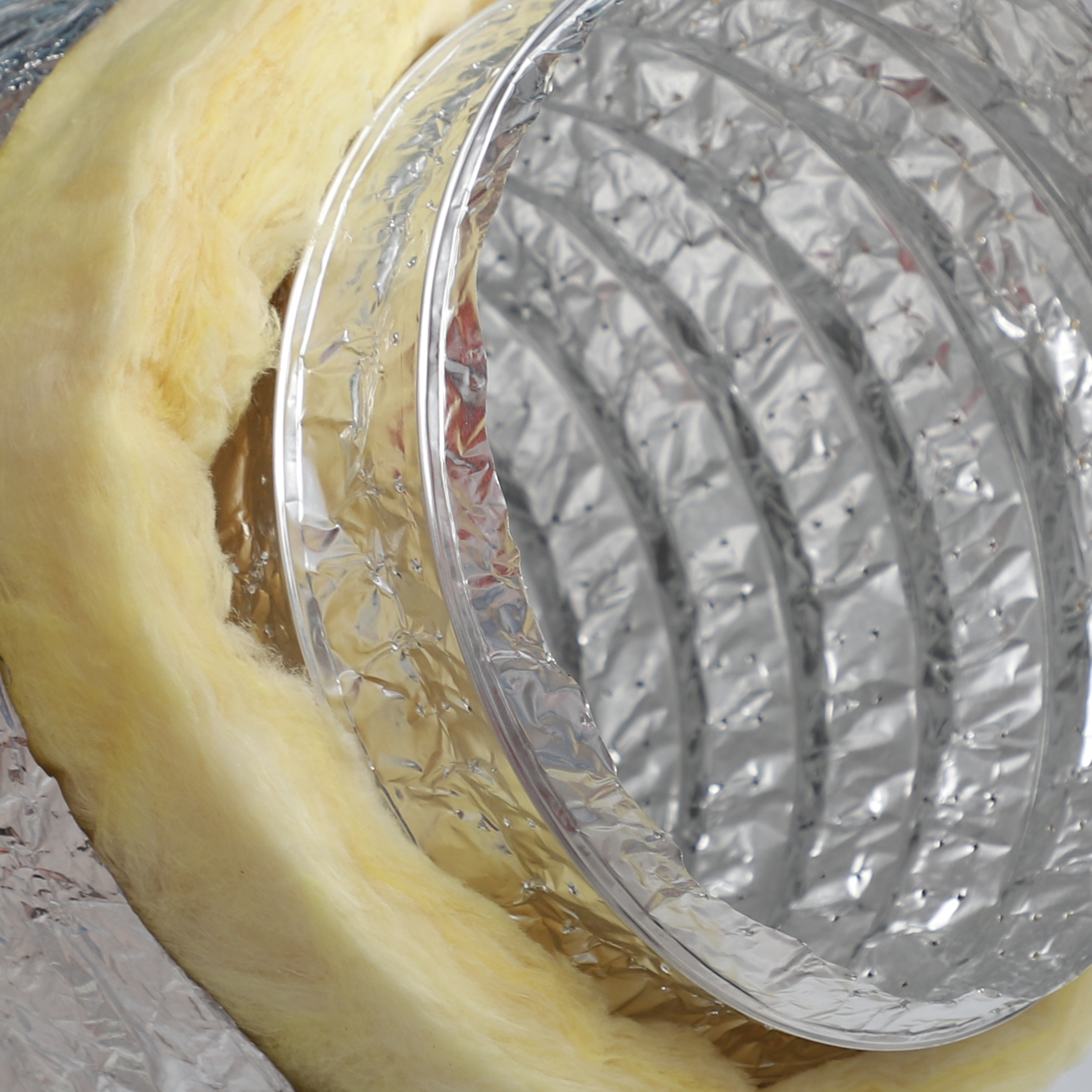

Multi-Layer Construction: Composed of a slightly perforated inner core, encapsulated by fiberglass insulation, and finished with a durable aluminum/polyester laminated outer jacket.
Superior Performance: Combines excellent fire resistance and acoustic damping with outstanding thermal insulation and high flexibility.
Efficiency & Protection: Effectively minimizes heat and cool loss while preventing condensation formation within HVAC systems.

Packaging

If you are interested in our products, please click here to see all the products.

Frequently Asked Questions

Can you serve free samples and how can I get them?

Yes, as one of the largest ventilation duct products manufacturers in China, we are able to offer free samples for your testing.

Can this be used for a range hood exhaust?

Suitable for use with heating, ventilation and air conditioning systems.

Can the duct be cut to length as needed?

Yes, the duct can be customized to your required length specifications.

Where can the duct be used for?

Ideal for heating and A/C systems and various ventilation applications.

What are the benefits of your flexible ducts?

Made of high quality aluminum which is flame retardant, they offer flexibility and easy installation.

Are you a manufacturer?

Yes, we are a professional manufacturer with several years of manufacturing and overseas sales experience, cooperating with distributors worldwide.

label:

Min. bestelaantal:	500 pc's
Prijs:	0.1-15$
Verpakking Details:	Plastic zak+doos
Levertijd:	15-20 dagen
Betalingscondities:	T/t
Levering vermogen:	10000 pc's

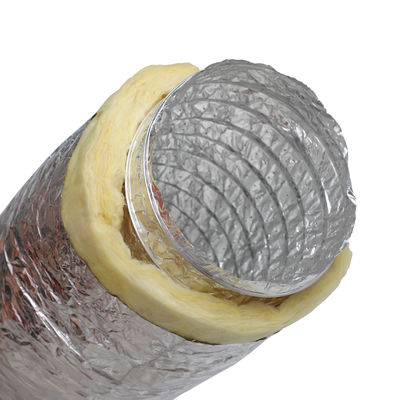

Sound-Reducing Multi-Layer Flexible HVAC Duct with -30 to +250°C Temperature Range and 30 m/s Air Flow Velocity
