HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL

Basisinformatie
Plaats van herkomst: China
Merknaam: Fanryn
Certificering: GBJ 47-83
Modelnummer: Glasswool deken
Min. bestelaantal: 1*40HQ
Prijs: 1-10$
Packaging Details: 1.Vacuum plastic bag+woven bag 2.Vacuum plastic bag_woven bag+PE bag 3.Vacuum plastic bag+PE shrinking bag 4.PE shrinking bag
Levertijd: 1*40HQ kan in ongeveer 1-10 dagen afgerond worden
Betalingscondities: T/T
Gedetailleerde informatie
Dikte: 10-48 kg/m3 Kleur: Geel
Dikte: 25 mm-200 mm Lengte: 5-30m
Applicatie: School Materiaal: glazen
Breedte: 0.6-1.25m Productnaam: Glaswol thermische isolatie akoestisch materiaal
Grade van brandbaarheid: Niet-ststreden graad A1, niet-ststreden klasse A Functie: Niet -ontvlambaar, waterdichte, warmte -isolatie, vochtig bewijs, isolerend/brandwerende/geluidsabso
Thermische geleidbaarheid: 0,031-0,042 W/mK Pakket: 1. Vacuüm plastic zak+geweven tas 2. Vacuüm plastic bag_woven tas+PE -tas 3. vacuüm plastic zak+pe k
Functie: Waterdicht, thermisch behoud Maat: 1200*600*50mm, 1200*600*100 mm (47.2*23.7*3,94 in)
Hydrofobiciteit: ≥98,2%
Markeren:

HVAC glasswool insulation blanket

,

acoustic glasswool insulation material

,

thermal insulation mineral wool blanket


Productomschrijving

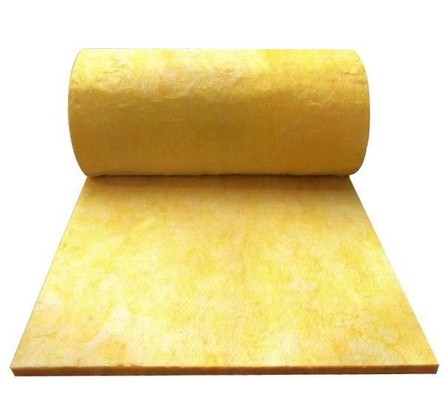

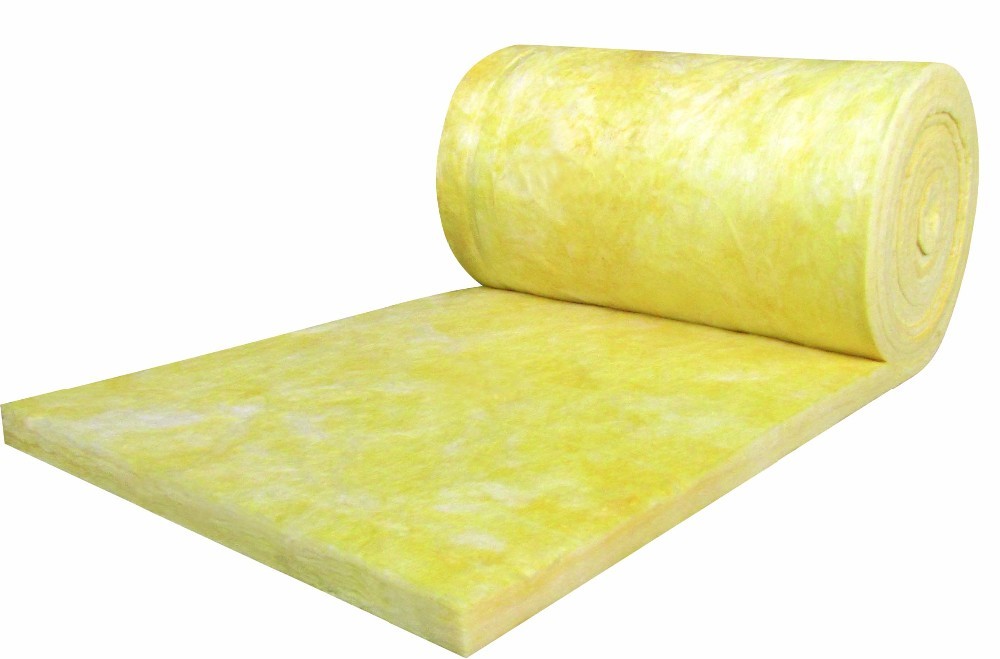

Product Introduction Of The Glass Wool Blanket Insulation

FANRYN centrifugal glass wool blanket Insulation are made for large laying area. Beside the character of thermal insulation, it also has the performances of shock absorption and acoustical isolation,especially for middle or low frequency sound, which can cancel the noise and improve working environment.

HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 0HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 1


Product Parameter Of The Glass Wool Blanket Insulation

Technical Data

Item

Unit

Index

Standard

Density

kg/m3

10-48

GB/T 5480.3

Average fiber dia

μm

5.5

GB/T 5480.4-1985

Water content

%

≤ 1

GB/T 3007-1982

Grade of combustibility



Non-combustible Grade A

GB 8624-1997

Preshrinking temp

≥250

GB/T 11835-1998

Thermal conductibility

w/m·k

0.031-0.042

GB/T 10294-1988

Hydrophobicity

%

≥ 98.2

GB/T 10299-1988

Moisture rate

%

≤ 5

GB/T 16401-1986

Sound absorption coefficient



1.03 product reverberation method 24kg/m3    2000HZ

GBJ 47-83

Slag inclusion content

%

≤ 0.3



Product Size Of The Glass Wool Blanket Insulation

Density(kg/m3)

Thickness(m)

Length (m)

Width (m)

Rolls/packing

10-48

0.025-0.2

5-30

0.6

2 rolls

10-48

0.025-0.2

5-30

1.1

1 roll

2 rolls overlapping

10-48

0.025-0.2

5-30

1.15

1 roll

2 rolls overlapping

10-48

0.025-0.2

5-30

1.2

1 roll

2 rolls overlapping

10-48

0.025-0.2

5-30

1.25

1 roll

2 rolls overlapping


Product Feature And Application Of The Glass Wool Blanket Insulation

1. Heat preservation for wall

2. Heat preservation of steel structure

3. Indoor partition wall

4. Train compartment

5. Sound absorption and acoustical isolation

HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 2

HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 3

HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 4HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 5

HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 6


Production Details Of The Glass Wool Blanket Insulation

HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 7HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 8HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 9


Product Packing Of The Glass Wool Blanket Insulation

1.Vacuum plastic bag+woven bag

2.Vacuum plastic bag+PE bag

3.Vacuum plastic bag+PE shrinking bag

4.PE shrinking bag

HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 10HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 11HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 12

HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 13HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 14


Production Facing Of The Glass Wool Blanket Insulation

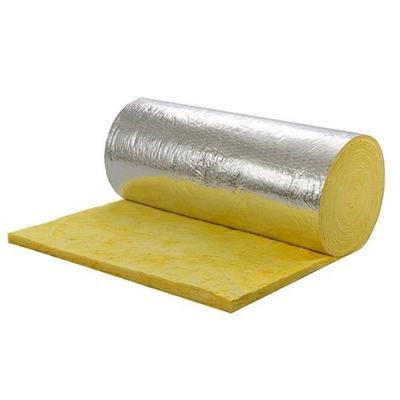

1.Foil-Scrim-Kraft Facing

2.Alum Glass Cloth Facing

3.Fiberglass Tissue

HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 15HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 16HVAC GLASSWOOL BLANKET INSULATION ACOUSTIC MATERIAL 17


FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process



Q2: How to pack exported goods?

A2: Vacuum plastic bag + woven bag(Standard Export Packing).



Q3: what is your lead time for one 40HC container order?

A3: Usual 7-10 work days after placing order



Q4: What is your advantage on glass wool blanket?

A4: Our glass wool blanket can be freely cut in construction according the shape required.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
