Gedetailleerde informatie

thermische geleidbaarheid:	0,031-0,042 W/m·K	Dikte:	24-96 kg/m³
Milieu-impact:	Rekupereerbaar, Milieuvriendelijk	vuurbestendigheid:	Niet-brandbaar, klasse A1
Geluidsabsorptiecoëfficiënt:	1.03 product weerkaatsingsmethode 24kg/m3 2000HZ	waterAbsorptie:	<1%
Productnaam:	Thermische Isolatieglaswol	Sollicitatie:	Thermische isolatie voor gebouwen, industriële apparatuur
Dikte:	25-100 mm	Materiaal:	Glazen wol
kleur:	geel, bruin, rood	Temperatuurweerstand:	-270°C tot 350°C
Afmetingen:	Varieert (bijvoorbeeld planken van 600x1200 mm)
Markeren:	yellow glass wool insulation board , sound absorption fiberglass panel , fire-resistant unfaced glass wool

Productomschrijving

Products Description

Aluminum foil-faced glass wool boards combine the inherent benefits of glass wool—non-combustibility, excellent thermal and acoustic insulation, and no toxic emissions when exposed to fire—with the added advantages of an integrated vapor barrier and enhanced radiant heat reflection. This makes them a superior, all-in-one, and environmentally responsible insulation solution for demanding building applications.

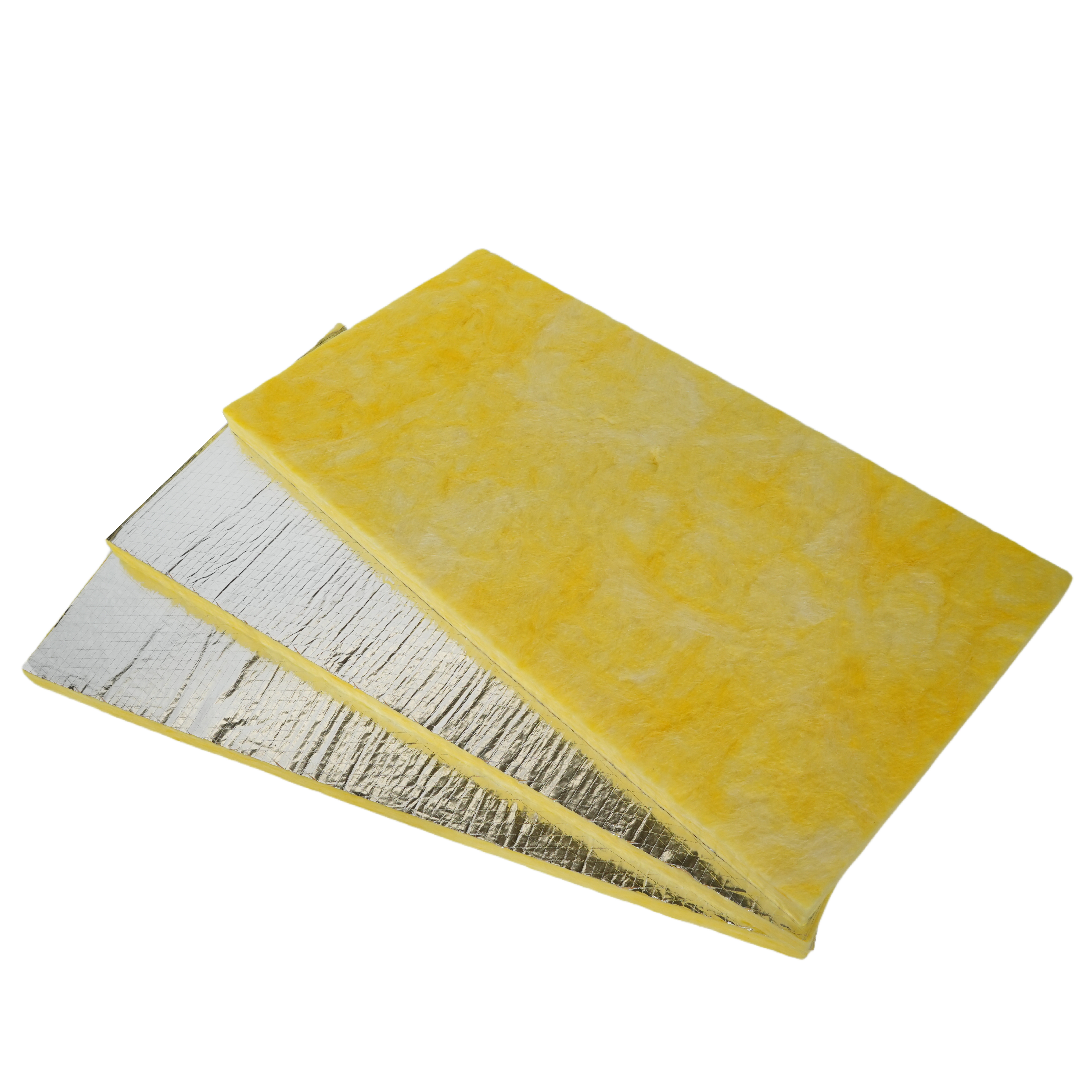

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 0

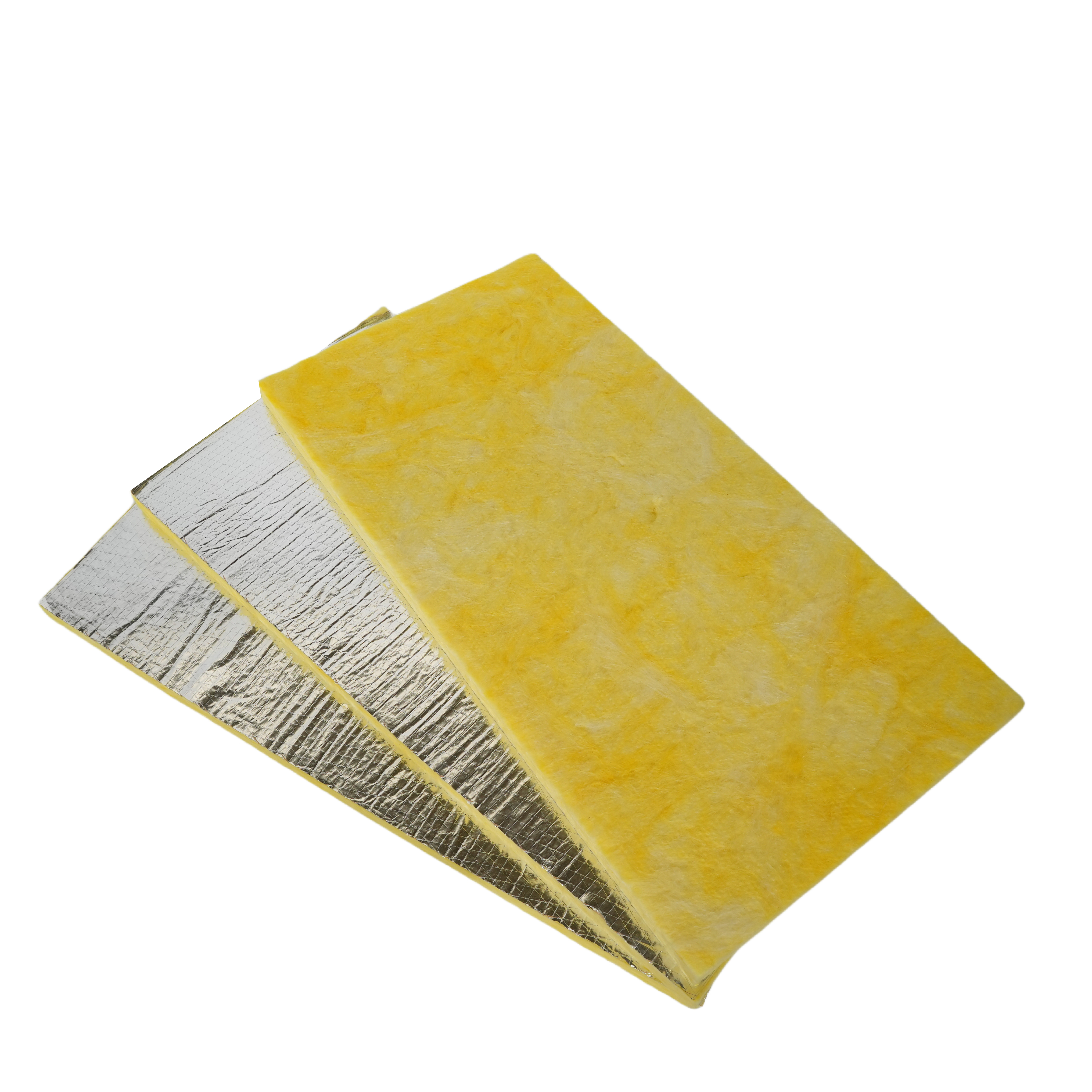

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 1

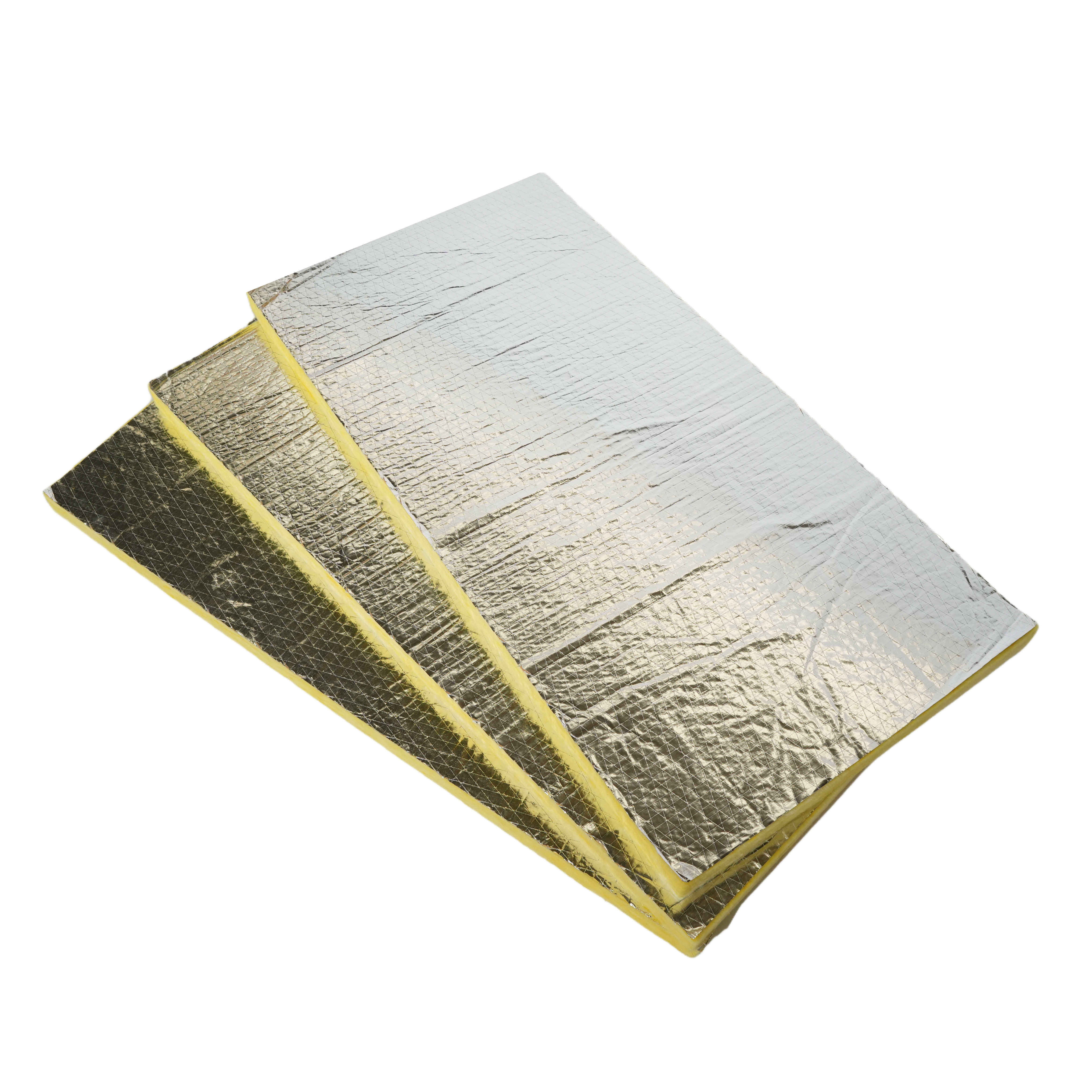

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 2

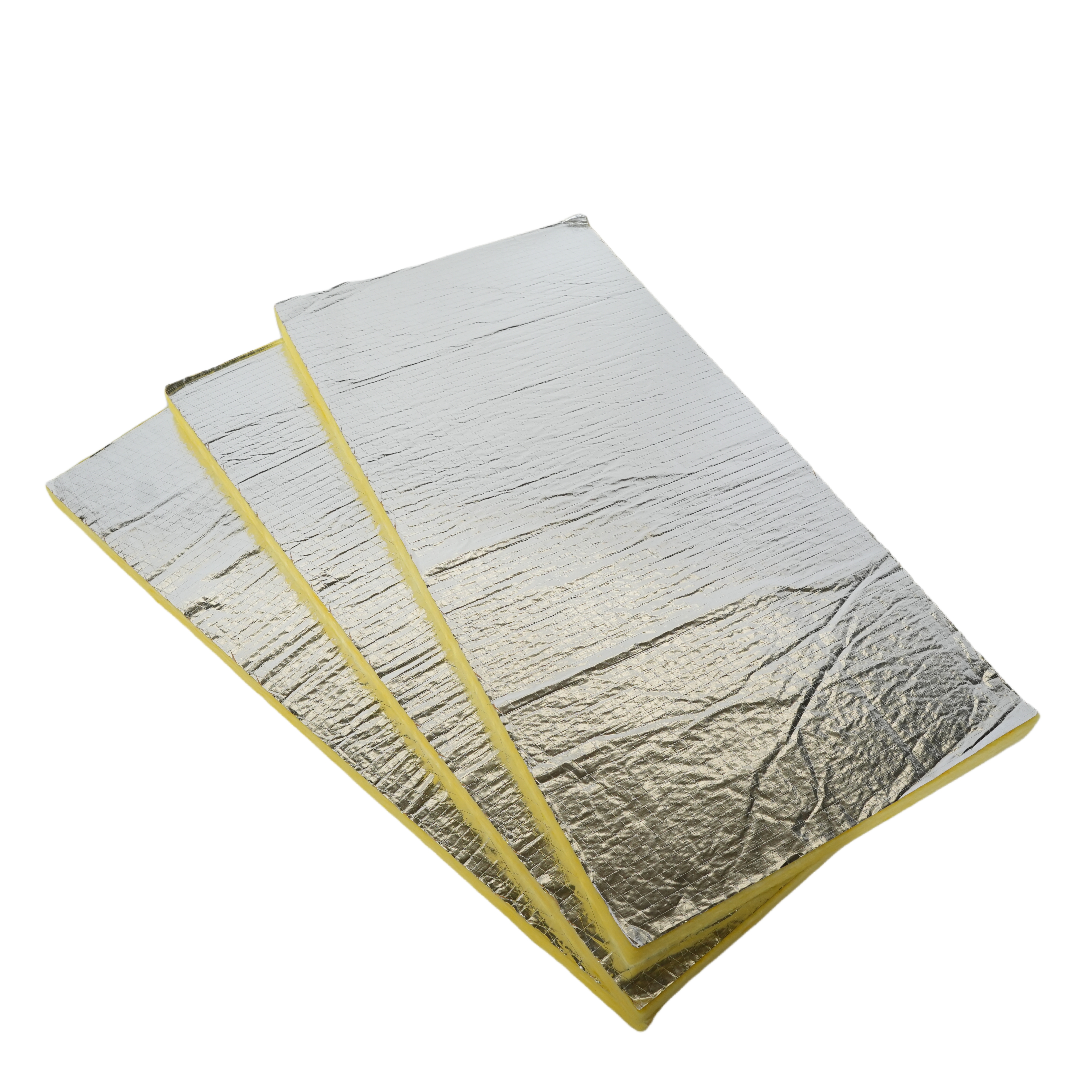

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 3

Product feature of the glass wool board with aluminum foil facing

Quick Recovery & Consistent Form: Regains full intended thickness within 24 hours after unpacking, ensuring uniform installation and reliable long-term dimensional stability.
Superior Workability: Composed of soft, long fibers that minimize dust and fiber fly during handling, creating a healthier and cleaner installation environment.
Enhanced Performance Layer: The foil facing reflects radiant heat, controls moisture diffusion, and provides a smooth, ready-to-cover surface—making it a complete insulation system in one product.

Product Specifications

Item	Unit	Index	Standard
Density	kg/m³	10-100	GB/T 5480.3-1985
Average fiber dia.	µm	5.5	GB/T 5480.4-1985
Water content	%	≤1	GB/T 3007-1982
Grade of combustibility		Non-combustible Grade A	GB 8624-1997
Reshrinking temp	℃	≥250	GB/T 11835-1998
Thermal conductibility	w/m.k	0.038-0.06	GB/T 10294-1988
Hydrophobicity	%	≥98.2	GB/T 10299-1988
Moisture rate	%	≤5	GB/T 16401-1986
Sound absorption coefficient		1.03 product reverberation method 24kg/m³2000HZ	GBJ 47-83
Slag inclusion content	%	≤0.3

Product size of the glass wool board

Density(kg/m3)	Thickness(m)	Length (m)	Width (m)	Pcs/packing
24-96	0.025-0.1	0.6-1.25	0.6	5-18
24-96	0.025-0.1	0.6-2.4	1.1-1.25	5-18

Product application of the glass wool board

Wall Insulation
Steel Structure Insulation
Interior Partition Walls
Railway Carriage Interiors
Acoustic Absorption & Soundproofing

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 4

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 5

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 6

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 7

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 8

Production Facing For glass wool board

Foil-Scrim-Kraft Facing

Alum Glass Cloth Facing

Fiberglass Tissue

Production packing of the glass wool board

The normal packing is plastic bag

Note: OEM is acceptable

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 9

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 10

glass Insulation yellow Color Sound Absorption Fiberglass Insulation Board Glass Wool Panel Unfaced Fire-Resistent 11

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: what is your lead time for one 40HC container order?

A3: Usual 15-20 work days after placing order

Q4: What is your advantage on glass wool board?

A4: Special size can be made according customer’s requirement.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.

label:

Plaats van herkomst:	China
Merknaam:	FANRYN
Certificering:	CE, ASTM E84, EN 13501 12018
Modelnummer:	glaswolplaat met aluminiumfolie bekleding

Min. bestelaantal:	1*40HQ per specificatie
Prijs:	0.2-5$/m2
Verpakking Details:	Vacuüm plastic zak + geweven zak
Levertijd:	7-10 dagen
Betalingscondities:	T/T
Levering vermogen:	1*40HQ 7 dagen
